Test/Tune Stand
Universal Fit
Shipping $58 in continental US
TEST/TUNE STAND
The BUD-ES Stand is a turn key test and tune stand which can also be used for engine storage. The unit stores easily and can be purchased with a powder coated, pre-wired control panel. The panel includes oil and water gauges, solenoid, a lighted power button, and a starter button. It comes completely wired and ready to plug and play! All you need is battery cables!
Directions included
Life time warranty on all metal parts!
UNIVERSAL APPLICATIONS
*Show Special Only*

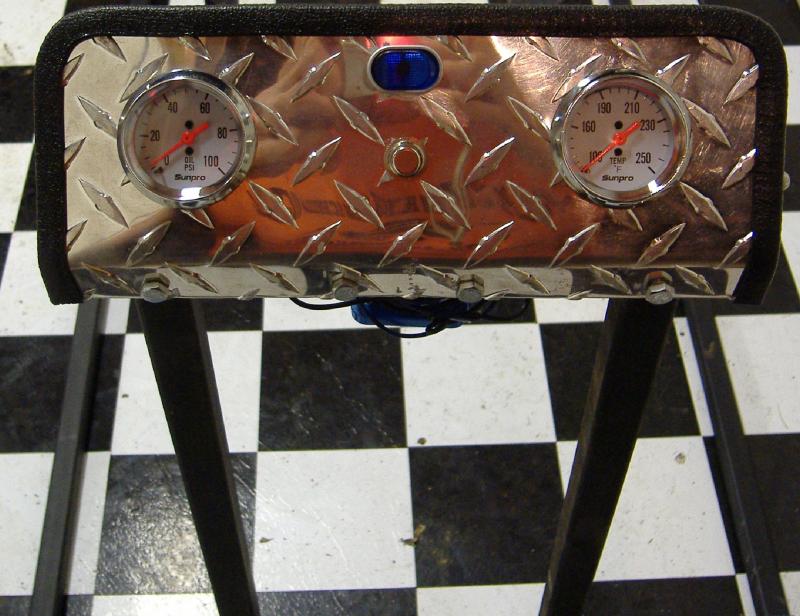

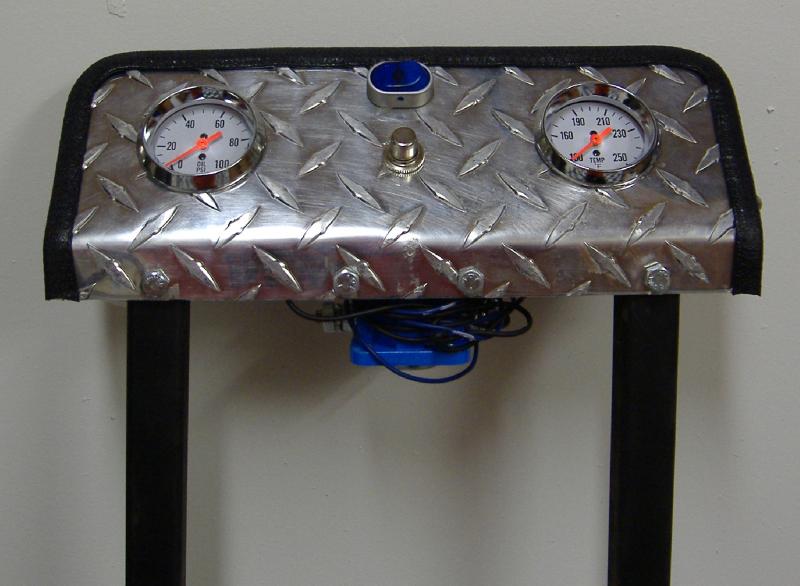

powder coated, prewired control panel
&
Test/Tune Stand
ONLY $299
Shipping on all or any parts extra

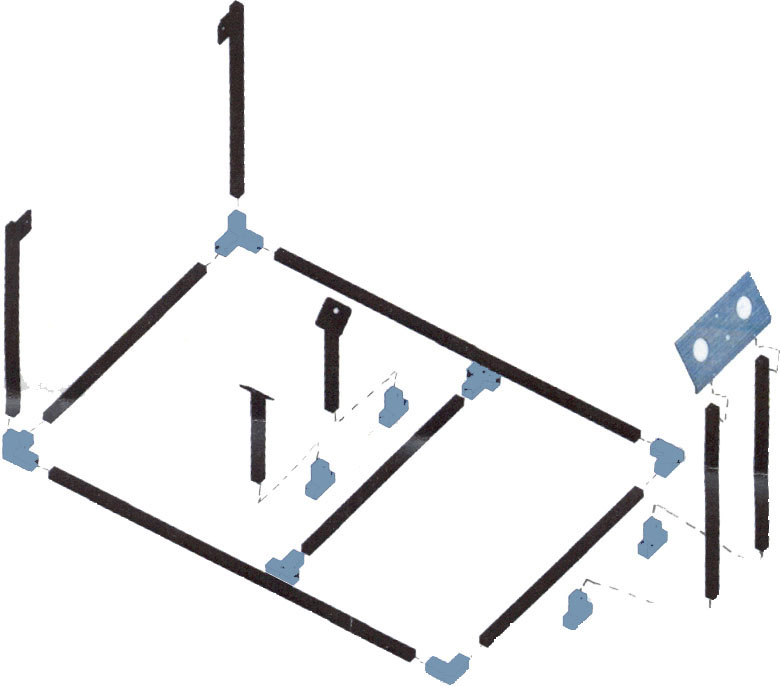

Exploded View and Parts List
Standard Kit- 2 - long side rails
- 3 - short cross bars
- 2 - 90 degree corners
- 2 - three way corners
- 2 - radiator supports
- 2 - control panel/bell housing supports
- 6 - locking Tees
- All necessary bolts included
Extras- 1 - powder coated control panel
- tachometer

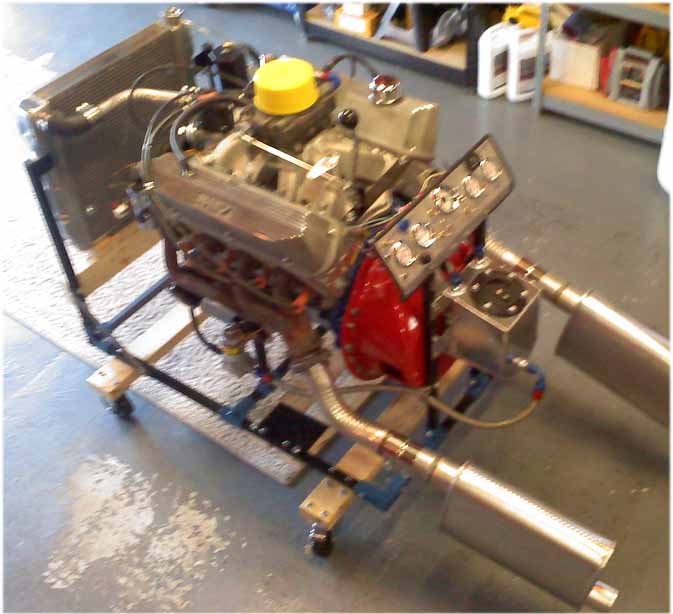

Stands at Work
Ready for the show w/modifications by customers

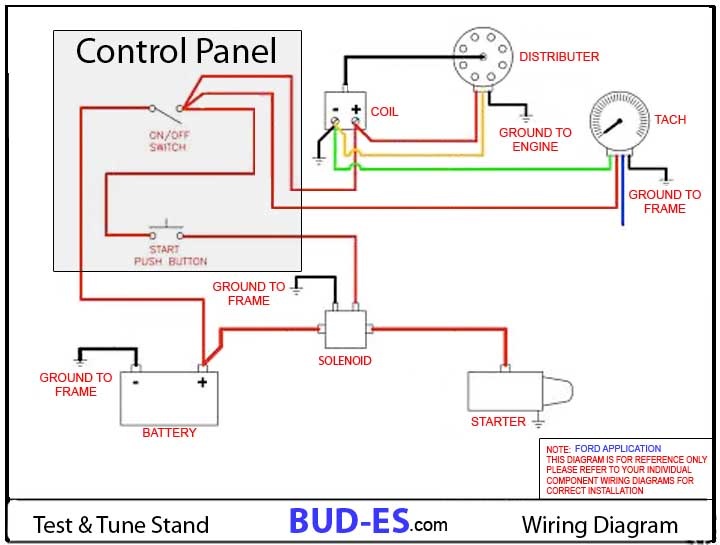

Control Panel Wiring Schematic
The image posted below is the small block ford version of our control panel wiring. This is a non- EFI system. Many other applications will be similar if you can identify the proper hardware and it's relation to the illustrated system. The tachometer hook up is optional and not included on the basic Test/Tune Stand package. Contact us for futher assistance if needed.
